- Size Range : 1/2" Through 30" Pipe Sizes.
- Material : Carbon Steel
- Finish : Black.
- Ordering : Specify Finish; Model Number And Pipe Size.
- Function : Recommended For The Support And Stabilizing Of Vertical Pipe Runs. Overall Length Is Less Than A Riser Clamp.
Interested in this item or want more information?
Hours:
Phone: 419-243-9144
Email: gogel.fastener@gmail.com
Can't find what you want? Give us a call and we can help you find it.
Details
| Specifications |
| Material | Carbon Steel |
| Finish | Black |
| Pipe Size | 1 1/4 inches |
| A | 4 1/4 inches |
| B | 3 1/4 inches |
| Bolt Size | 3/8 inches |
| Material Thickness | 11 gauge |
| Material Size | 1 inches |
| Max. Recommended Load (At 650°F) | 500 lbs |
| Max. Recommended Load (At 750°F) | 445 lbs |
| Approx. Weight per 100 (pcs.) | 40 lbs |
| Carton Quantity | 25 |
Additional Information
Manufacturer: Globe Pipe Hanger Products

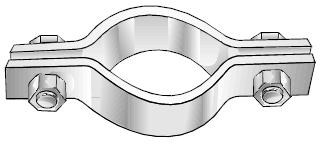

For More Information on the 550 Series Single Bolt Pipe Clamp - 550-112,
[Click Here] to Link to Manufacturer Web Site
