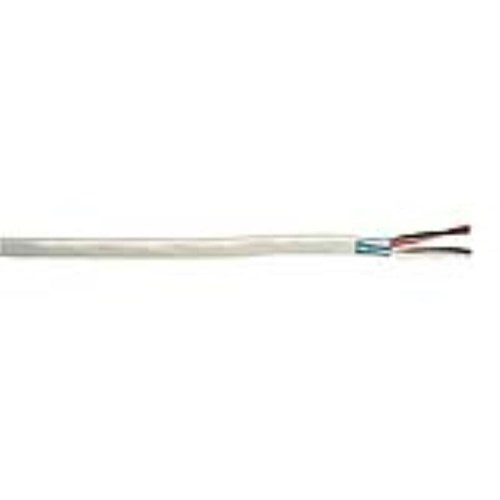

STRANDED BC EPS CMP/CL3P

Coleman Cable - CCI

SKU / Product InfoQuantity
77304
22/2
77306
22/3

Quick Overview

    Features & Applications :-
    • Low Smoke PVC jacket
    • Ripcord and Sequential Footage Marking
    • Each pair individually shielded with Aluminum Mylar overall shield with tinned copper drain wire
    • Power limited circuit and communication cable for plenum applications.
    • Remote Control, Signaling, Security Systems, Communications, Intercom/P.A. Systems, Sound/Audio, and Nurse Call
Interested in this item or want more information?

Hours:

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters

Electrical Properties :

Conductor 22 AWG Bare Copper
Stranding 7/30
Insulation Material Low Smoke PVC
Insulation Thickness 0.010'' Nom
Insulated Conductor Dimensions 0.041'' Nom.
Number of Conductors 2
Lay Length(Pairs) 1.75'' Nom.
Lay Length(Overall) Parallel
Shield Alum/Mylar
Drain 24 AWG Solid Tinned Copper
Jacket Material Low Smoke PVC
Jacket Thickness 0.017'' Nom.
Overall Cable Diameter 0.185'' Nom.
Approximate Cable Weight 23.8 Lbs/1M' Nom.
Flame Rating UL 910 Steiner Tunnel Smoke and Flame Test
Temperature Rating -20°C to 75°C
Rated Voltage 300 V RMS Max
Capacitance Between Conductors @ 1 KHZ 39 pF/ft Nom.
Capacitance Between Conductors to Shield @ 1 KHz 73 pF/ft Nom.
DC Resistance per Conductor @ 20°C 16.19 Ohms/1M' Nom.

Additional Information


Manufacturer: Coleman Cable - CCI
For More Information on the STRANDED BC EPS CMP/CL3P, [Click Here] to Link to Manufacturer Web Site
