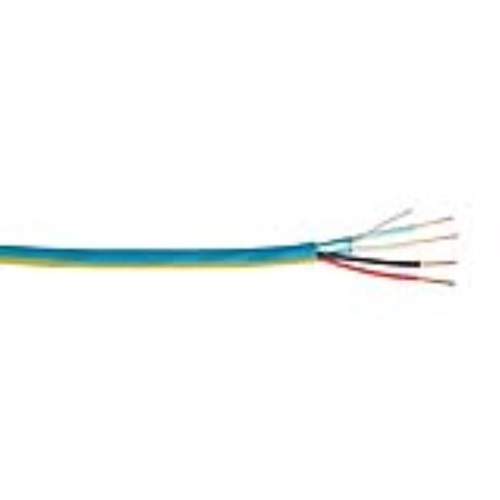

22/1Pr Eps Str Bc + 18/2 Str Bc

99295

Coleman Cable - CCI

Quick Overview

    Specification:-
    • Provide Data and Power under one jacket
    • Power Limited Circuit Cable Class 3 Circuits
    • UL Standard 13, NEC Article 725
    • Meets or exceeds the requirements of AMX® AXLINK® and Crestron® Cresnet® protocols. (AMX and AXLINK are AMX trademarks. Crestron and Cresnet are Crestron trademarks.)
Interested in this item or want more information?

Hours:

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:-

Electrical Properties:-

Part 1
Conductor 18 AWG (1/.040) Solid Copper Clad Steel 0.040
Dielectric Foam Polyethylene 0.180
Shielding 1 & 2 100% Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid 0.216
Shielding 3 & 4 100% Aluminum/Polyester/Aluminum Tape plus 60% Aluminum Braid 0.249
Part 2
Conductor 24 AWG (1/.020) Solid Bare Copper 0.020
Dielectric Polyethylene 0.038
Assembly "Two Insulated conductors are twisted into pairs and four pairs are cabled into a Core core."
Final
Jacket "Part 1 and Part 2 are jacketed in a two legged construction with a web between each leg" 0.290 x 0.575
VALUE*
Impedance (ohms)   75
Capacitance pf/ft   17
Velocity of Propagation (%)   81
Attenuation (Max db/100 ft) 10 MHz 1.85
50 MHz 1.0
100 MHz 1.3
200 MHz 2.05
400 MHz 3.05
700 MHz 5.95
1000 MHz 7.55
1200 MHz 8.9
1450 MHz 10.1
1500 MHz 10.3
2000 MHz 11.3
2500 MHz 12.2
3000 MHz 13.48

Additional Information

Manufacturer: Coleman Cable - CCI
For More Information on the 22/1Pr Eps Str Bc + 18/2 Str Bc, [Click Here] to Link to Manufacturer Web Site
