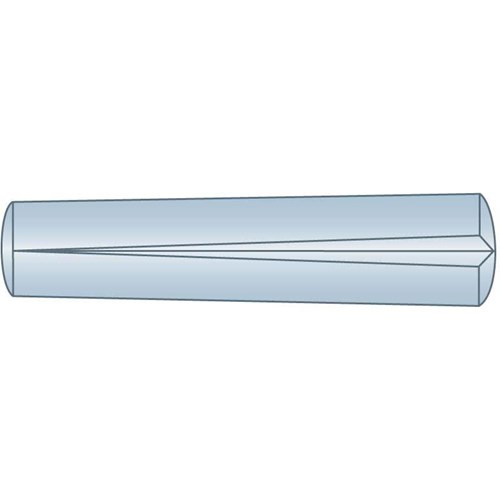

Groove Pin 3/32 x 1/2 Type A ZC

GP-0093-0500-A

GL Huyett

Quick Overview

Interested in this item or want more information?

Hours: M -F 7:30 am - 4:30 pm

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details

Attribute Name

Value

Weight (lbs.)

0.001

Brand:

Driv-Lok

Double Shear Strength Minimum:

890 lbs

End Radius:

.1350"

Expanded Diameter Maximum:

.1030"

Expanded Diameter Minimum:

.0990"

Expanded Diameter Nominal:

.1010"

Finish:

Zinc Clear

Inch or Metric:

Inch

Manufacturer Part Number:

F01272

Material:

Low Carbon Steel

Outside Diameter Maximum:

.0938" (3/32)

Outside Diameter Minimum:

.0923"

Outside Diameter Nominal:

.0938" (3/32)

Overall Length Maximum:

.5100"

Overall Length Minimum:

.4900"

Overall Length Nominal:

.5000" (1/2)

Specification:

ASME B18.8.2

Type:

Type A

All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

Additional Information

Manufacturer: GL Huyett

For More Information on the Groove Pin 3/32 x 1/2 Type A ZC, [Click Here] to Link to Manufacturer Web Site
