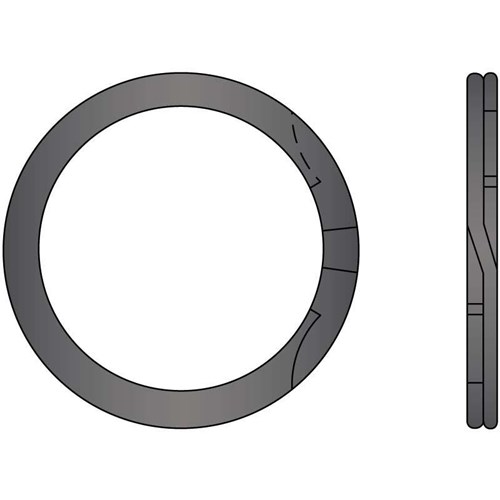

Internal Spiral Ring 1.850 PL

RR-185

GL Huyett

Quick Overview

Interested in this item or want more information?

Hours: M -F 7:30 am - 4:30 pm

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details

Attribute Name

Value

Weight (lbs.)

0.0087

Duty:

Standard Duty

Finish:

Plain

Free Diameter:

1.937

Free Diameter Maximum:

1.957

Free Diameter Minimum:

1.937

Groove Depth:

.034

Groove Diameter:

1.917

Groove Diameter Maximum:

1.922

Groove Diameter Minimum:

1.912

Groove Width:

.056

Groove Width Maximum:

.060

Groove Width Minimum:

.056

Housing Diameter:

1.850

Inch or Metric:

Inch

Material:

Spring Steel

Radial Wall:

.118

Radial Wall Maximum:

.122

Radial Wall Minimum:

.114

Shaft Diameter:

1.850"

Style:

Wound

Thickness:

.049

Thickness Maximum:

.052

Thickness Minimum:

.046

Type:

Int Spiral Ring

All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

Additional Information

Manufacturer: GL Huyett
