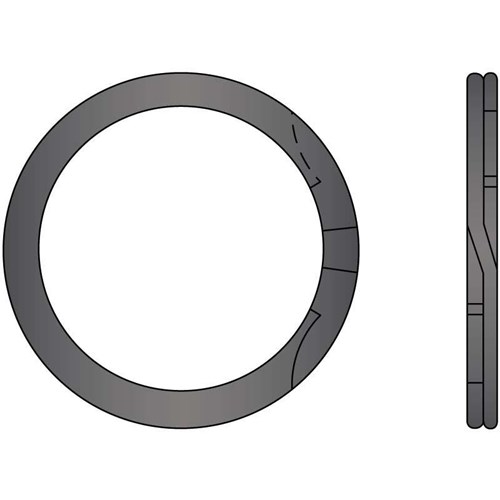

Internal Spiral Ring 1/2 PH

RR-050

GL Huyett

Quick Overview

    Interested in this item or want more information?

    Hours:

    Phone: 419-243-9144

    Email: gogel.fastener@gmail.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Attribute Name
    Value

    Weight (lbs.)
    0.0004
    Duty:
    Standard Duty
    Finish:
    Phosphate
    Free Diameter:
    .532
    Free Diameter Maximum:
    .545
    Free Diameter Minimum:
    .532
    Groove Depth:
    .013
    Groove Diameter:
    .526
    Groove Diameter Maximum:
    .528
    Groove Diameter Minimum:
    .524
    Groove Width:
    .030
    Groove Width Maximum:
    .033
    Groove Width Minimum:
    .030
    Housing Diameter:
    .500
    Inch or Metric:
    Inch
    Material:
    Spring Steel
    Radial Wall:
    .045
    Radial Wall Maximum:
    .049
    Radial Wall Minimum:
    .041
    Shaft Diameter:
    .500" (1/2)
    Style:
    Wound
    Thickness:
    .025
    Thickness Maximum:
    .027
    Thickness Minimum:
    .023
    Type:
    Int Spiral Ring

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information


    Manufacturer: GL Huyett
    For More Information on the Internal Spiral Ring 1/2 PH, [Click Here] to Link to Manufacturer Web Site
