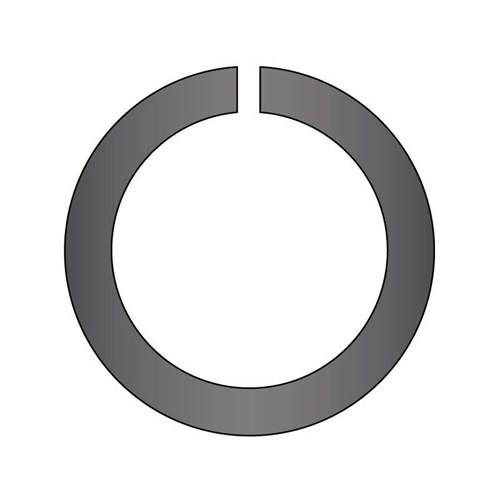

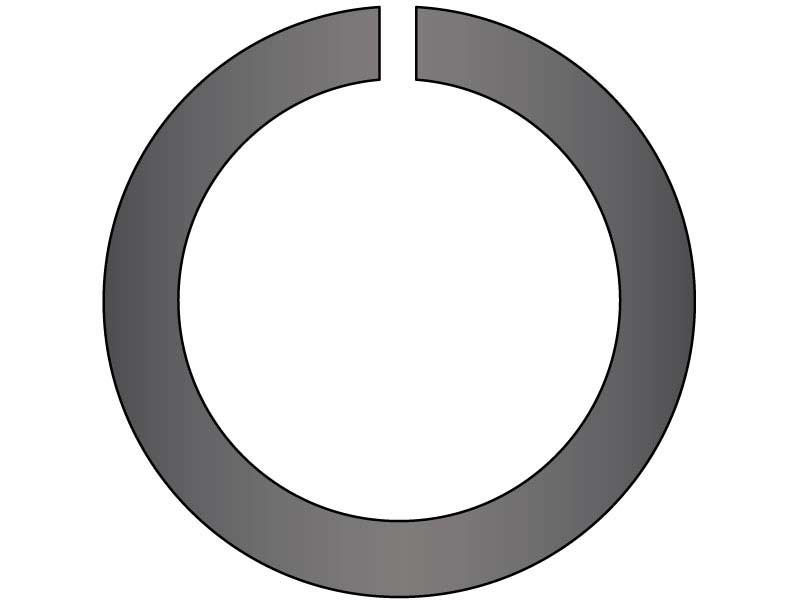

External Closed Square Ring 3/4 HD PL

XSC-131

GL Huyett

Quick Overview

Interested in this item or want more information?

Hours: M -F 7:30 am - 4:30 pm

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details

Attribute Name

Value

Weight (lbs.)

0.006

Finish:

Plain

Free Diameter:

.697

Free Diameter Maximum:

.697

Free Diameter Minimum:

.672

Groove Depth:

.023

Groove Diameter:

.704

Groove Diameter Maximum:

.707

Groove Diameter Minimum:

.701

Groove Width:

.100

Groove Width Maximum:

.102

Groove Width Minimum:

.098

Inch or Metric:

Inch

Material:

Spring Steel

Shaft Diameter:

.750

Style:

Wire

Type:

Square Ring - Closed Ext

Wire Cross Section:

.093

Wire Cross Section Maximum:

.095

Wire Cross Section Minimum:

.091

All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

Additional Information

Manufacturer: GL Huyett

For More Information on the External Closed Square Ring 3/4 HD PL, [Click Here] to Link to Manufacturer Web Site
