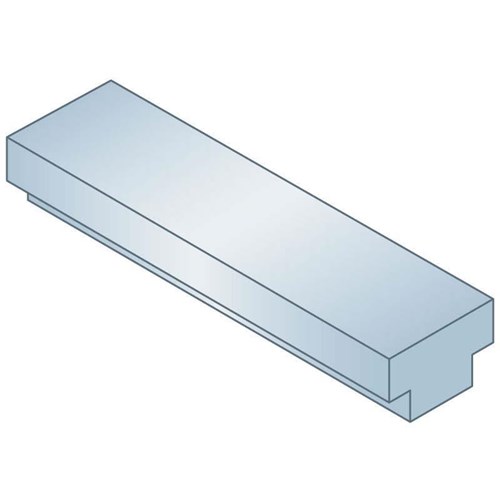

Step KS 3/8 x 5/16 x 1 Ft Type 1 ZC

SK08-1

GL Huyett

Quick Overview

Interested in this item or want more information?

Hours: M -F 7:30 am - 4:30 pm

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Details

Attribute Name

Value

Weight (lbs.)

0.4053

Finish:

Zinc Clear Trivalent

Height 2 Maximum:

.1613

Height 2 Minimum:

.1513

Height 2 Nominal:

.1563

Height Maximum:

.1925

Height Minimum:

.1825

Height Nominal:

.1875

Inch or Metric:

Inch

Length:

1 Ft

Material:

Carbon Steel

Overall Length Maximum:

12.000

Overall Length Minimum:

11.875

Overall Length Nominal:

12.000

Shape:

Step

Size:

3/8" x 5/16"

Type:

Type 1

Width 2 Maximum:

.3125

Width 2 Minimum:

.3095

Width 2 Nominal:

.3125

Width Maximum:

.3750

Width Minimum:

.3720

Width Nominal:

.3750

All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

Additional Information

Manufacturer: GL Huyett

For More Information on the Step KS 3/8 x 5/16 x 1 Ft Type 1 ZC, [Click Here] to Link to Manufacturer Web Site
