Nuts and Bolts

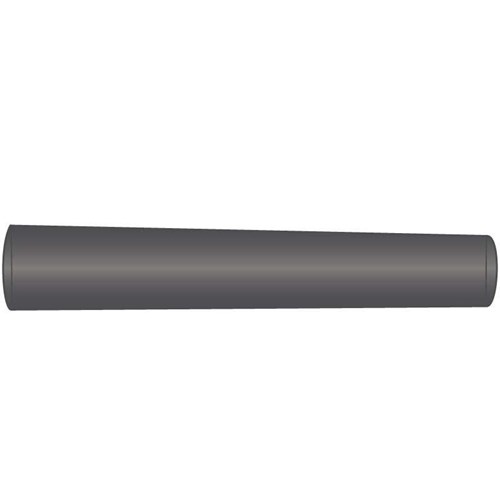

Taper Pin #0 x 1-3/4 PL

Hours: M -F 7:30 am - 4:30 pm

Phone: 419-243-9144

Email: gogel.fastener@gmail.com

Can't find what you want? Give us a call and we can help you find it.

Attribute Name

Value

Weight (lbs.)

0.0077

Finish:

Plain

Inch or Metric:

Inch

Material:

Carbon Steel

Outside Diameter Maximum:

.1573"

Outside Diameter Minimum:

.1553"

Outside Diameter Nominal:

.1560"

Overall Length Maximum:

1.760"

Overall Length Minimum:

1.740"

Overall Length Nominal:

1.750" (1-3/4)

Pin Number:

Specification:

ASME B18.8.2

All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

Manufacturer: GL Huyett

For More Information on the Taper Pin #0 x 1-3/4 PL, [Click Here] to Link to Manufacturer Web Site
